Thursday, January 13, 2011

Remote controlled 8258 alternative truck with Arduino: introduction

After a long, long time without any post, today I'm going to resume my initial goal for the blog and I'll show you an Arduino + Lego project.
It's a modification to the truck of the 8258 alternative model to make it a remote controlled vehicle via a pair of Arduinos.
In fact this is a proof of concept for future, more elavorated, models. I had the model already built and the goal was to make it remote controllable with the minimum effort. So, no asthetic goals, complicated solutions... just a proof of concept.

The project has two parts:
1- The truck itself. With a motor to power the car governed by an HBridge, a servo for the steering, a radio receptor to receive commands and an Arduino to control it all.
2- The remote. With a Wii nunchuck, a radio emitter and an Arduino.

It this video you cand see it in action.



My first intention was to write two big posts. The first one about the construction process and the second about the programming. The problem is that I don't have the time. So I've decided to write short posts focused in a simple aspect of the project every time.
So this is the first post of a serie: the introduction.
In the next weeks I'll try to write a post a week and put a link in this first post every time new one is published.
Enjoy!

Thursday, July 29, 2010

Controlling an LCD Display via I2C bus

For the same project I'm working on I mentioned in the last post, I need to control a 2x16 characters LCD Display.
The Arduino software has an official library (LiquidCrystal Library) to control -in a very easy way- that kind of displays. Unfortunately, you need at least 6 pins from the Arduino to control one single display. Once again we'll run out of pins quickly...
So, can we use the same strategy used to control an ICM7218 with only two pins, now with the LCDDisplay? Of course, we can, but this time we'll have to port the original library.
The idea to save (digital) pins is to plug as many PCF8574 chips as you need in a I2C bus, and control it with analog 4 and 5 from Arduino with the Wire library. I recommend to read these two posts (here and here) if you are not familiar with the concept.
The porting was done easily and with good results. I did it without opening the original datasheet, just recoding the Arduino pin working to the use of the PCF8574 connected to the I2C bus. The original library was written in a very clear way.
You can find the new library in my GitHub repository, under Arduino/libraries/PCFCrystal, including some example sketches. Feel free to download and use the library. Remember that the library is provided "as is", without any kind of warranty. (It's been tested only with the two constructors presented below).
Ok, the hard work is done. You only have to use the library! The use of the library is very easy if you know the Liquid Crystal. You only have to use a different syntax for the constructor, include and initialize the Wire library, and the rest of the code is actually the same code you used with Liquid Crystal.

Let's see it in action!


Let's start with an example. I've modified the Hello World example to show the time it takes to print a single character. Below you have a video showing a similar sketch to the one you can find with the code (PCFHelloWorld). It's a bit different as I changed it after the video recording:


As you can see I'm using an Arduino Pro Mini, but this don't affect to the results.
Now lets see the wiring. There are two versions, for a 4 bits interface and a 8 bits one.
This is the schema for the 4 bits interface. In this case I use a single PCF8574 to control the 6 pins needed.



Now the schema for the 8 bits interface. As you can see in this case I need an extra PCF8574 as I need to control 10 pins.



You can note in the schemas, and see in the video too, that there is a blinking led attached to a free pin of one PCF8574. This is to demonstrate that you can use the unused pins of the PCF8574 for whatever you want without interfering the LCDDisplay.

And now the code. Let's focus in the differences with the original library.

First we need to initilize the Wire library to use I2C.
// Inclusion of Wire
#include <Wire.h>

void setup()
{
// Setup for Wire
Wire.begin();

// TODO: more initialization
}


Then we have to create an PCFCrystal object indicating the pins and address of the PCF(s) used.
For the 4 bits interface this is the code:

byte buffer = 0;
// initialize the library with the numbers of the interface pins
// rs, en, d0, d1, d2, d3, address, buffer
// 4 bits
PCFCrystal lcd(B00100000, B00010000, B00000001, B00000010, B00000100, B00001000, 0x20, &buffer);

As you can see, you need a byte to store the information sent to the PCF8574. Then we call the constructor passing the masks used to access the pins (rs, enable and d0 to d3) plus the byte used to store data and the address of the PCF8574 in the I2C bus. Note that you can use whichever pins you prefer from the PCF8574.
In the case of the 8 bits interface the code is similar except because you need two PCF8574 and consequently, two buffers and addresses. Note that in this case, all the data pins must be in the first PCF, and the control pins (enable and rs) must be in the second one. Here you have the code:
byte buffer = 0;
byte data = 0;
// initialize the library with the numbers of the interface pins
// rs, en, d0, d1, d2, d3, d4, d5, d6, d7, data_address, control_address, data_buffer, control_buffer
PCFCrystal lcd(B00100000, B00010000, B10000000, B01000000, B00100000, B00010000, B00000001, B00000010, B00000100, B00001000, 0x21, 0x20, &data, &buffer);


From that point, the rest of the code is the same as using a regular Liquid Crystal library. Here is the whole sample code with comments:

/*
PCFCrystal Library - Hello World

Demonstrates the use a 16x2 LCD display using the I2C capabilities of Arduino.
This library is a porting of the original LiquidCrystal library, prepared to
control the LCD display via one or two PCF8574.
The LiquidCrystal and PCFLiquidCrystal
libraries work with all LCD displays that are compatible with the
Hitachi HD44780 driver. There are many of them out there, and you
can usually tell them by the 16-pin interface.

This sketch prints "Hello World!" to the LCD
and shows the time and the time consumed to print a single character

The circuit (4 bits interface):
* LCD RS pin to PCF8574 output 5 (pin 10)
* LCD Enable pin to PCF8574 output 4 (pin 9)
* LCD D4 pin to PCF8574 output 0 (pin 4)
* LCD D5 pin to PCF8574 output 1 (pin 5)
* LCD D6 pin to PCF8574 output 2 (pin 6)
* LCD D7 pin to PCF8574 output 3 (pin 7)
* 10K resistor:
* ends to +5V and ground
* wiper to LCD VO pin (pin 3)

Library PCFCrystal created on June 2010
http://ardugonic.blogspot.com

Liquid Crystal:
Library originally added 18 Apr 2008
by David A. Mellis
library modified 5 Jul 2009
by Limor Fried (http://www.ladyada.net)
example added 9 Jul 2009
by Tom Igoe
modified 25 July 2009
by David A. Mellis


http://www.arduino.cc/en/Tutorial/LiquidCrystal
*/

#include <wire.h>

// include the library code:
#include <pcfcrystal.h>

byte buffer = 0;
byte data = 0;
// initialize the library with the numbers of the interface pins
// rs, en, d0, d1, d2, d3, address, buffer
// 4 bits
PCFCrystal lcd(B00100000, B00010000, B00000001, B00000010, B00000100, B00001000, 0x20, &buffer);
// 8 bits
//PCFCrystal lcd(B00100000, B00010000, B10000000, B01000000, B00100000, B00010000, B00000001, B00000010, B00000100, B00001000, 0x21, 0x20, &data, &buffer);

void setup() {
  Wire.begin();

  // set up the LCD's number of rows and columns:
  lcd.begin(16, 2);
  // Print a message to the LCD.
  lcd.print("scnds:loop:micrs");
}

long counter = 0;
int led = HIGH;

void loop() {
  counter++;

  // set the cursor to column 0, line 1
  // (note: line 1 is the second row, since counting begins with 0):
  lcd.setCursor(0, 1);
  // print the number of seconds since reset:
  lcd.print(millis()/1000);
  // print the number of loops since reset
  lcd.print(":");
  lcd.print(counter);
  // print the time to print 1 char
  long mics = micros();
  lcd.print(":");
  lcd.print(micros() - mics );

  if (counter % 27 == 0) {
    if (led == LOW) {
      buffer = buffer | B01000000;
      led = HIGH;
    }
    else {
      buffer = buffer & ~B01000000;
      led = LOW;
    }

    Wire.beginTransmission(0x20);
    Wire.send(buffer);
    Wire.endTransmission();
  }
}


Perfomance


Obviously the drawback of using this approach is that you spend more time to make the operations. But how much more? I don't know, but as an estimation, this sample sketch prints in the display the time spent to write a single character. I've tested the sample with both LiquidCrystal and PCFCrystal libraries in 4 and 8 bits interface and this is the result:
  • LiquidCrystal, 8 bits: 208 microseconds.
  • LiquidCrystal, 4 bits: 324 microseconds.
  • PCFCrystal, 8 bits: 1196 microseconds.
  • PCFCrystal, 4 bits: 1664 microseconds.

This is only an orientation. When you write strings it's supposed to take comparatively less time difference. Anyway it's clear that the saving in pins is payed with a decrease of performance. Is up to you to decide witch solution is better for your project.

Thursday, June 10, 2010

Can we control more than 7,600 LEDs with just two pins?

In the last two posts (here and here), we saw how to drive 64 LEDs (in the form of a 4 digits 7-segments display) with two Arduino wires controlling an I2C bus.
But how many LEDs can we control with this architecture? Let's find out.
First what we learned. We made groups of 64 LEDs controlled each by an ICM7218a. Then, we used a PCF8574 bus expander to drive the ICM with only two pins. As we saw, we can plug 8 PCF8574 chips in the same bus and 8 additional PCF8574a. So we can have (8 + 8) * 8 = 128 outputs controlled with Arduino's analog 4 and 5.
Now, let's see how can we use all this to drive as many LED's as we can.
The ICM only checks its inputs when the WRITE pin goes from high to low. So, we can connect the 8 outputs from a PCF to the input pins of the ICM ID0 to ID7. I mean, I can take the outputs of 1 PCF and connect them to the inputs of as many ICM's as I need. With the MODE line, I do the same.
As the ICM's only take in account their inputs when WRITE goes low, the only thing we have to do is to connect a different output to each of the ICMs WRITE.
To control an ICM I use the common data and MODE lines and it's WRITE pin.
If you're lost with the explanation here is a schema of the wiring (for only 3 ICMs).



Conclusion: I only need 1 additional pin to control a single ICM. How many pins do I have left after the use of data and MODE lines? 16 * 8 - 9 = 119 pins. That is, I can control 119 ICMs. As I control 64 LEDs with each ICM, I can drive 119 * 8 = 7,616 independent LED's with two pins!
I haven't tested this "invention", but it looks feasible. Doesn't it?
And what can we do with the rest of the analog and digital pins?... Maybe we could control some leds!! ;)

Monday, June 7, 2010

ICM7218a combined with a PCF8574 to reduce the number of pins needed

In my last post we saw how to use an ICM7218a to control 64 leds. The ICM was driven directly by an Arduino. The problem with this approach is that you need 10 pins. That's a lot.
In this post we'll cover how to reduce the amount of pins needed to just two. With the help of the I2C bus this will be easy.


I2C


I2C is a protocol invented by Phillips that needs the use of only two wires. It allows to communicate all kind of devices that implement the protocol like accelerometers, distance sensors, memory modules, digital potentiometers and many more.
One of the devices is the master and is responsible to control the high level communication protocol and the others are slaves that respond to master commands (readings and writings).
Arduino implements I2C via the Wire core library. It can act as master or slave, being the coding process very easy. There are several official samples included in the Arduino IDE installation.
The two pins used in the Arduino's implementation are analog 4 (SDA) and analog 5 (SCL).

PCF8574


This chip (datasheet) implements I2C in slave mode and offers 8 independent input/output pins. So, you can easily use it to add 8 digital pins to your Arduino.
The IC has 3 pins to indicate its slave address. So you can plug 8 units in the same bus to obtain 64 pins. And, what's more, there is another version, the PCF8574A with exactly the same specification except that the address generated are in a different range. So you can add 64 more digital pins. Can you imagine an Arduino with 128 digital pins?

Driving our 7 segments display


The idea here to reduce the amount of pins needed to control the ICM7218 is to use two PCF8574 that I'll control with two pins. Actually I'm going to use only a PCF8574 in my sample because, as in my previous post, I'm using CODEb decoding. That means that I need at most 7 simultaneous pins. Here you can see a picture of the complete system.



As you can hardly see in the yellow breadboard are still placed the displays and the ICM. But now the wires don't go to the Arduino but to the white one, where the PCF is located. From there, two wires go to analog 4 and 5 at the Arduino. And here a video of the whole "invention" working.



Let's see in detail the wiring used from the PFC8574 to the ICM7218.
First I've used two pins for Write (P5) and Mode (P6).
Second, 4 pins for SHUTDOWN (P0), DECODE (P1), HEXA/CODE B (P2) and DATA COMING (P4).
Finally, 5 pins for the 4 datalines (P0 to P3) plus the digital poins (P4). Note that 4 datalines share the pins with the control pins, as these groups are never used simultaneously.
With this wiring the way to control the ICM is simple. As all the data lines are checked when WRITE goes from high to low, to send data you have to set WRITE high in the PCF and then send to this chip the bits you need with WRITE low. At this moment the ICM will respond.
At the end of the post you can see the sketch of the video above.
In conclusion, adding the I2C capabilities of Arduino with a PCF8574, you can reduce from 10 to 2 the amount of pins needed to drive the ICM7218. And what's more, you can add more PCF modules to drive additional ICM without the need to use any additional pin from Arduino. What's the drawback, apart from having to use an additional chip? Obviuosly, the time. If with the direct driving of the ICM it took 880 microseconds to write the full eight digits, now I need 4788 to do the same. This is 5.5 times more... but I can still make 208 complete writings in a second!

// Pin definition
// Actually are pins (P0 to P7) from the PCF8574
#define ID0_PIN B00000001
#define ID1_PIN B00000010
#define ID2_PIN B00000100
#define ID3_PIN B00001000
#define ID7_PIN B00010000

#define NOT_WRITE_PIN B00100000
#define MODE_PIN B01000000

#define NOT_SHUTDOWN_PIN B00000001
#define NOT_DECODE_PIN B00000010
#define NOT_CODE_B_PIN B00000100
#define DATA_COMING_PIN B00010000

// The 3 address lines are grounded.
// Looking at the datasheet this is the address 0x40.
// But Wire shifts the address one bit to left in write and read operations, so I have to provide the address shifted to right
#define ADDRESS 0x20

// Inclusion of Wire
#include <Wire.h>

void setup()
{
// Setup for Wire
Wire.begin();

// Set write to high for the first time
sendI2C((byte)NOT_WRITE_PIN);

// A couple of tests
// 1- Fill with 00000000 to 99999999
for (int i = 0; i < 10; i++) {
write8Digits(i * 11111111);
delay(500);
}

// 2- Make a full refresh and display the time it takes
unsigned long time = micros();
write8Digits((unsigned long)0); // Number to test
write8Digits(micros() - time); // Displaying microseconds
delay(2000);

}

unsigned long counter = 0;
void loop()
{
// Display an infinite counter
write8Digits(counter++);
// If you don't wait at least 2 microseconds, the display doesn't have the time to refresh the 8 digits
delay(2);
}

void sendI2C(byte b)
{
// Using of I2C in master mode with the device at ADDRESS
Wire.beginTransmission(ADDRESS);
// Data to send
Wire.send(b);
// End of communication
Wire.endTransmission();
}

void write8Digits(unsigned long num)
{

// Control word
byte data = MODE_PIN | NOT_SHUTDOWN_PIN | DATA_COMING_PIN;
sendI2C(data);

// Write high
sendI2C((byte)NOT_WRITE_PIN);

// Sending a digit (will send Write to low)
unsigned long digit = num;
for (byte i = 0; i < 8; i++){
writeDigit(digit % 10);
digit /= 10;
}
}

void writeDigit(byte b)
{
// Using CODEB
// The digital point allways off (it's inverted)
byte data = ID7_PIN;
// ID0 to ID3 with the number to display
if (B00000001 & b)
data |= ID0_PIN;
if (B00000010 & b)
data |= ID1_PIN;
if (B00000100 & b)
data |= ID2_PIN;
if (B00001000 & b)
data |= ID3_PIN;

sendI2C(data);

// Leave Write HIGH for the next writing
sendI2C((byte)NOT_WRITE_PIN);

}

Friday, May 21, 2010

Driving an 8 digits 7 segment display with Arduino and an ICM7218A

For my next project (a four-lanes Arduino controlled lap counter for my home slot car track) I need several 7-segment displays. Some time ago I found this really cheap 4-Digit 7-Segment Display at Sparkfun.
The problem was that this display is common anode and I didn't know any led driver suitable for common anode displays. The famous MAX7219 is only suitable for common cathode displays. Fortunately in the comments of the Saparkfun's page, the user IsotopeJ commented the existence ICM7218 chip. I got one at my local store and I've managed to put all working. This has been a quick (beside the resulting mess of wires), easy and straightforward process. This is the result:

The usage of the ICM7218A is perfectly explained in its datasheet.
This single chip allows to control up to 8 digits (or 64 leds) using 8 data lines and 2 control lines. So I can control two Sparkfun displays with a single chip and, what's really interesting, once the data is stored in the IC, leaving the Arduino totally free to do other tasks.
There are two drawbacks for using this chip.
  • The first one is that you can't access to random leds or digits directly. If you want to change a single led, you have to send again the state for the 64 leds plus a 8 bits control word. This is, you have to send allways nine 8-bits words. This might be a problem if your application is time aware.
  • The second one is that you have to use ¡10 pins! and there's not an "out of the box" way to chain several chips if you have to control more than 8 digits. This can be a problem for our poor Arduino and its 14+6 pins! Fortunately this can be solved with one more chip, as I'll explain in my next post.
So, lets see how to use the ICM.
Firstly the wiring. The ICM7218 uses 16 data lines to control 8 groups (DIGIT1 to DIGIT8) of leds (SEG a to SEG f and D.P.) each. If you're using a module like the one referred from Sparkfun, the wiring is trivial to control the multiplexed digits, leaving uncontrolled the colon and apostrophe. If you're trying to control 64 separate leds you have to:
  1. Group them in groups of 8. Each group will be a digit.
  2. Wire all the anodes of each group to a DIGIT output.
  3. Take one led from every group and wire them together to the SEG a.
  4. Repeat 3 for the other leds through SEG b to SEG e and D.P.
And don't forget to power the IC. In this sample you can see that I've used an external 9v battery and an LM7805 (it's below the wires at the right edge of the breadboard) to stabilize the power to 5 volts.
Secondly the logic to control the IC from Arduino. You have to use the ID0 to ID7 inputs plus the pins WRITE and MODE. The most important pin is WRITE. When the pin goes from high to low, the IC interprets the other inputs. For the rest of the time all the inputs are ignored.
So, choose a pin for every input and use this logic to refresh the state of the whole group of leds:
  1. Turn WRITE high.
  2. Prepare the control word:
    • Set MODE high.
    • Set ID4 (SHUTDOWN) high.
    • Set ID5 (DECODE) low if you want to control the leds directly or LOW if you want the input to be decoded as Code B or Hexadecimal. In this case put ID6 (HEXA/CODE B) high for Code B or low for Hexa.
    • Set ID7 (DATA COMING) high.
  3. Send the control word by setting WRITE to LOW.
  4. Set MODE to LOW.
  5. For every digit send the data (starting at digit 1):
    • Set WRITE to high.
    • Put the data in the 8 inputs if you're not decoding or in ID0 to ID3 plus ID7 for the digital point if you are decoding.
    • Set WRITE to low to send the digit.
Note that you must send the 8 digits. Additionally note that when you send the control word, the display will go blank until the 8 digits are received. This can dim the display if you refresh it very quick.
And that's all. Nice and easy.
You can use this little sketch to test the chips and as a base for your own developments. At the beginning of the sketch you can see the pins used.
With this sketch you spend about 880 microseconds to update the state of the 64 leds.

// Pin usage
#define ID0_PIN 2
#define ID1_PIN 3
#define ID2_PIN 4
#define ID3_PIN 5
#define ID4_PIN 8
#define ID5_PIN 9
#define ID6_PIN 10
#define ID7_PIN 11

#define NOT_WRITE_PIN 6
#define MODE_PIN 7

// Note that these pins are the same as ID4-ID7
#define NOT_SHUTDOWN_PIN 8
#define NOT_DECODE_PIN 9
#define NOT_CODE_B_PIN 10
#define DATA_COMING_PIN 11

void setup()
{
// All pins are output
pinMode(ID0_PIN, OUTPUT);
pinMode(ID1_PIN, OUTPUT);
pinMode(ID2_PIN, OUTPUT);
pinMode(ID3_PIN, OUTPUT);
pinMode(ID4_PIN, OUTPUT);
pinMode(ID5_PIN, OUTPUT);
pinMode(ID6_PIN, OUTPUT);
pinMode(ID7_PIN, OUTPUT);
pinMode(NOT_WRITE_PIN, OUTPUT);
pinMode(MODE_PIN, OUTPUT);

// A couple of tests
// 1- Fill with 00000000 to 99999999
for (int i = 0; i < 10; i++) {
write8Digits(i * 1111);
delay(2000);
}

// 2- Make a full refresh and display the time it takes
unsigned long time = micros();
write8Digits(0); // Number to test
write8Digits(micros() - time); // Displaying microseconds
delay(1000);
}

unsigned long counter = 0;

void loop()
{
// Display an infinite counter
write8Digits(counter++);
delay(2); // If you don't wait at least 2 microseconds, the display doesn't have the time to refresh the 8 digits
}

// Function to write the 8 digits
// Uses Code B encoding in the ICM
void write8Digits(unsigned long num)
{
// Control Mode
digitalWrite(NOT_WRITE_PIN, HIGH);
digitalWrite(MODE_PIN, HIGH);

// Setup control word
digitalWrite(NOT_SHUTDOWN_PIN, HIGH); // Normal mode
digitalWrite(NOT_DECODE_PIN, LOW); // Decode mode
digitalWrite(NOT_CODE_B_PIN, LOW); // CodeB mode
digitalWrite(DATA_COMING_PIN, HIGH); // The data to display will follow

// Write the control word
digitalWrite(NOT_WRITE_PIN, LOW);
digitalWrite(NOT_WRITE_PIN, HIGH);

// Write digits, so mode to low
digitalWrite(MODE_PIN, LOW);

// Send the 8 digits, starting by the least significant
unsigned long digit = num;
for (byte i = 0; i < 8; i++){
writeDigit(digit % 10);
digit /= 10;
}
}

void writeDigit(byte b)
{
// I'm using CodeB, so I only need the 4 least significant pins
digitalWrite(ID0_PIN, B00000001 & b);
digitalWrite(ID1_PIN, B00000010 & b);
digitalWrite(ID2_PIN, B00000100 & b);
digitalWrite(ID3_PIN, B00001000 & b);
// Digital point allways low (Note that it's inverted by the ICM)
digitalWrite(ID7_PIN, HIGH);

// Write the digit
digitalWrite(NOT_WRITE_PIN, LOW);
digitalWrite(NOT_WRITE_PIN, HIGH);
}

Friday, March 26, 2010

Introducing Susi and the PScheduller library

Susi

What's Susi? It's a Super Simon game.
Why is it super? Because it features:
  • Normal 4-buttons-4-leds-1-buzzer behaviour.
  • Ongoing button monitor to fail if a button is pressed when it's not the user's turn.
  • Time out on excessive delay in the user's turn.
  • A 7-segments display to show animations, count-down time and final score controlled by a 595 shift register.
  • A servo to show the progress.
  • Two user controllers: my generic control panel and a Lego Technic one.
And all controlled with an Arduino, of course.
Do you want to see it working? Watch the video.



If we all know the world is plenty of Simon games, why did I make another Simon? Because it's a good demonstration for my PScheduller library, the real motivation of this post, and because my children have fun with it.

PScheduller

Let's introduce PScheduller. PScheduller is a library for Arduino developed with two goals in mind:
  1. To have a simple way to run several tasks simultaniously. This is, a kind of multithreading.
  2. To implement a state machin (FSM) that allows the programmer to focus on what really matters depending on the state of the program.
PScheduller is a library mainly written in C++. You can download it from my GitHub repository. There you'll find the directory PScheduller that you have to put under hardware/libraries/ at your arduino's installation directory. You'll find too the full code of Susi (named PSimon) that you have to put in your Arduino projects directory.

In future posts I'll describe PScheduller and its usage, and the code of PSimon. If you download and open PSimon, don't get scary. PSimon it's a relatively complex program due to the number of components it controls. With simpler programs, the code is really clear and straightforward.

The lego version

The version of the video avobe uses my generic control panel (you'll have a future post on it too). I constructed a Lego Technic panel for Susi to be more useful for my children. They like to play with it!
You can see a video of this second version in action:

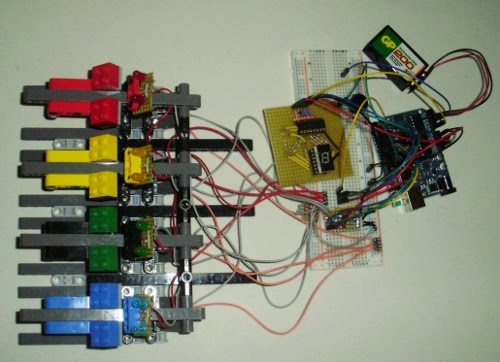

In this version I've substituted the momentary push buttons of the generic panel by four limit switches. They are actually well integrated in the Lego structure and produce the "click" that you can heard in the video each time the user presses a color. Look at the picture below.


By the way, this was my first "real" project combining electronics with a Lego structure. And I learned an important lesson: you have to plan what you want to do before doing it. I just started to construct the structure, to place components and to solder long wires to avoid problems when I plug the terminals in the Arduino or a breadboard. But when it was time to plug it all, I discovered that it was dificult to have a comfortable layout. In fact you can see in the video how the 7-segments is in a strange position...


Summing up

Ok, it's enough for today. I don't like long posts.
To complement this post I'll comment in future posts:
  • In depth explanation of PScheduller with some easy samples.
  • In depth explanation of Susi (PSimon) code as a sample of a more complex program using PScheduller.
  • An introduction to my generic controller. It's really useful.
If you have any preference or suggestion about more topics regarding this post, please, leave a comment and I'll try to respond (the comments are moderated just to avoid spammers).

Wednesday, March 10, 2010

Welcome!

Hello and Welcome to my blog.
In this blog I'll post about my two current hobbys: Arduino (electronics) and Lego, specially Lego Technic. I'll document here my progress in merging this two technologies to make amazing -I hope- projects.
Get fun!

Disclaimer. I apologize for my poor english. Although my mother tongues are spanish and catalan, I prefere to write in english to reach a wider audience who can enrich this blog with its comments. Of course, you are welcome to correct my writings ;)
