Driving an 8 digits 7 segment display with Arduino and an ICM7218A

For my next project (a four-lanes Arduino controlled lap counter for my home slot car track) I need several 7-segment displays. Some time ago I found this really cheap 4-Digit 7-Segment Display at Sparkfun.

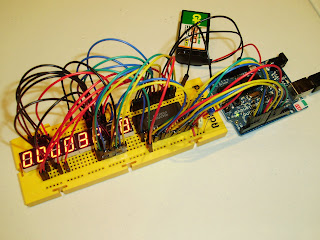

The problem was that this display is common anode and I didn't know any led driver suitable for common anode displays. The famous MAX7219 is only suitable for common cathode displays. Fortunately in the comments of the Saparkfun's page, the user IsotopeJ commented the existence ICM7218 chip. I got one at my local store and I've managed to put all working. This has been a quick (beside the resulting mess of wires), easy and straightforward process. This is the result:

The usage of the ICM7218A is perfectly explained in its datasheet.
This single chip allows to control up to 8 digits (or 64 leds) using 8 data lines and 2 control lines. So I can control two Sparkfun displays with a single chip and, what's really interesting, once the data is stored in the IC, leaving the Arduino totally free to do other tasks.
There are two drawbacks for using this chip.
  • The first one is that you can't access to random leds or digits directly. If you want to change a single led, you have to send again the state for the 64 leds plus a 8 bits control word. This is, you have to send allways nine 8-bits words. This might be a problem if your application is time aware.
  • The second one is that you have to use ¡10 pins! and there's not an "out of the box" way to chain several chips if you have to control more than 8 digits. This can be a problem for our poor Arduino and its 14+6 pins! Fortunately this can be solved with one more chip, as I'll explain in my next post.
So, lets see how to use the ICM.
Firstly the wiring. The ICM7218 uses 16 data lines to control 8 groups (DIGIT1 to DIGIT8) of leds (SEG a to SEG f and D.P.) each. If you're using a module like the one referred from Sparkfun, the wiring is trivial to control the multiplexed digits, leaving uncontrolled the colon and apostrophe. If you're trying to control 64 separate leds you have to:
  1. Group them in groups of 8. Each group will be a digit.
  2. Wire all the anodes of each group to a DIGIT output.
  3. Take one led from every group and wire them together to the SEG a.
  4. Repeat 3 for the other leds through SEG b to SEG e and D.P.
And don't forget to power the IC. In this sample you can see that I've used an external 9v battery and an LM7805 (it's below the wires at the right edge of the breadboard) to stabilize the power to 5 volts.
Secondly the logic to control the IC from Arduino. You have to use the ID0 to ID7 inputs plus the pins WRITE and MODE. The most important pin is WRITE. When the pin goes from high to low, the IC interprets the other inputs. For the rest of the time all the inputs are ignored.
So, choose a pin for every input and use this logic to refresh the state of the whole group of leds:
  1. Turn WRITE high.
  2. Prepare the control word:
    • Set MODE high.
    • Set ID4 (SHUTDOWN) high.
    • Set ID5 (DECODE) low if you want to control the leds directly or LOW if you want the input to be decoded as Code B or Hexadecimal. In this case put ID6 (HEXA/CODE B) high for Code B or low for Hexa.
    • Set ID7 (DATA COMING) high.
  3. Send the control word by setting WRITE to LOW.
  4. Set MODE to LOW.
  5. For every digit send the data (starting at digit 1):
    • Set WRITE to high.
    • Put the data in the 8 inputs if you're not decoding or in ID0 to ID3 plus ID7 for the digital point if you are decoding.
    • Set WRITE to low to send the digit.
Note that you must send the 8 digits. Additionally note that when you send the control word, the display will go blank until the 8 digits are received. This can dim the display if you refresh it very quick.
And that's all. Nice and easy.
You can use this little sketch to test the chips and as a base for your own developments. At the beginning of the sketch you can see the pins used.
With this sketch you spend about 880 microseconds to update the state of the 64 leds.

// Pin usage
#define ID0_PIN 2
#define ID1_PIN 3
#define ID2_PIN 4
#define ID3_PIN 5
#define ID4_PIN 8
#define ID5_PIN 9
#define ID6_PIN 10
#define ID7_PIN 11

#define NOT_WRITE_PIN 6
#define MODE_PIN 7

// Note that these pins are the same as ID4-ID7
#define NOT_DECODE_PIN 9
#define NOT_CODE_B_PIN 10
#define DATA_COMING_PIN 11

void setup()
// All pins are output
pinMode(ID0_PIN, OUTPUT);
pinMode(ID1_PIN, OUTPUT);
pinMode(ID2_PIN, OUTPUT);
pinMode(ID3_PIN, OUTPUT);
pinMode(ID4_PIN, OUTPUT);
pinMode(ID5_PIN, OUTPUT);
pinMode(ID6_PIN, OUTPUT);
pinMode(ID7_PIN, OUTPUT);

// A couple of tests
// 1- Fill with 00000000 to 99999999
for (int i = 0; i < 10; i++) {
write8Digits(i * 1111);

// 2- Make a full refresh and display the time it takes
unsigned long time = micros();
write8Digits(0); // Number to test
write8Digits(micros() - time); // Displaying microseconds

unsigned long counter = 0;

void loop()
// Display an infinite counter
delay(2); // If you don't wait at least 2 microseconds, the display doesn't have the time to refresh the 8 digits

// Function to write the 8 digits
// Uses Code B encoding in the ICM
void write8Digits(unsigned long num)
// Control Mode
digitalWrite(NOT_WRITE_PIN, HIGH);
digitalWrite(MODE_PIN, HIGH);

// Setup control word
digitalWrite(NOT_SHUTDOWN_PIN, HIGH); // Normal mode
digitalWrite(NOT_DECODE_PIN, LOW); // Decode mode
digitalWrite(NOT_CODE_B_PIN, LOW); // CodeB mode
digitalWrite(DATA_COMING_PIN, HIGH); // The data to display will follow

// Write the control word
digitalWrite(NOT_WRITE_PIN, LOW);
digitalWrite(NOT_WRITE_PIN, HIGH);

// Write digits, so mode to low
digitalWrite(MODE_PIN, LOW);

// Send the 8 digits, starting by the least significant
unsigned long digit = num;
for (byte i = 0; i < 8; i++){
writeDigit(digit % 10);
digit /= 10;

void writeDigit(byte b)
// I'm using CodeB, so I only need the 4 least significant pins
digitalWrite(ID0_PIN, B00000001 & b);
digitalWrite(ID1_PIN, B00000010 & b);
digitalWrite(ID2_PIN, B00000100 & b);
digitalWrite(ID3_PIN, B00001000 & b);
// Digital point allways low (Note that it's inverted by the ICM)
digitalWrite(ID7_PIN, HIGH);

// Write the digit
digitalWrite(NOT_WRITE_PIN, LOW);
digitalWrite(NOT_WRITE_PIN, HIGH);
